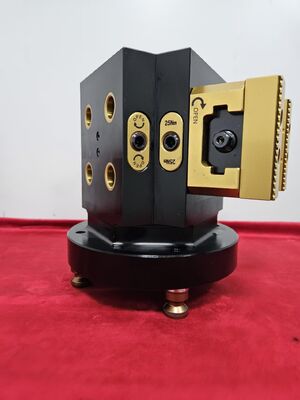

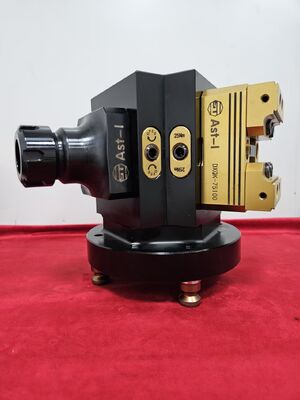

Zero Point Fixture with 0.005mm Repeatability
The Zero Point Fixture revolutionizes CNC machining efficiency and precision, designed specifically for 3-axis vise setups and dovetail fixture CNC configurations. This advanced system delivers exceptional performance with dramatic cycle time reductions while maintaining superior repeatability and stability.
Key Performance Features
- Repeatability: Within 0.005mm tolerance for consistent precision
- Cycle Time Reduction: Up to 80% faster setup and changeover
- Locking Force: Powerful 18KN clamping force prevents vibration
- Standard Accessories: Includes 4 pull studs for secure attachment
- Weight Range: 5 to 20 kilograms depending on model requirements
- Lifespan: 1 to 5 years of reliable operation
Applications & Compatibility
The AST SK96-205 Zero Point Fixture excels in precision machining applications where accuracy, flexibility, and rapid setup are essential. With 0.01mm accuracy and flexible exchange capability, this system supports complex 4-axis and 5-axis clamping operations.
Ideal For:
- 4-axis and 5-axis machining operations
- Aluminum vise jaw compatibility
- Aerospace, automotive, and precision engineering
- Quick setup installations under 5 minutes
- Complex geometry and multi-directional machining
Customization Options
The AST SK96-205 offers comprehensive customization services to meet specific machining requirements. Featuring 5th axis self-centering vise compatibility, this fixture adapts to complex 3, 4, and 5-axis CNC operations while maintaining 0.005mm repeatability.
Technical Support & Services
Our comprehensive support includes installation assistance, calibration, and repair services to maintain optimal fixture performance. Preventive maintenance programs, replacement parts, and upgrade kits are available to minimize downtime and extend operational lifespan.
Packaging & Shipping
Each Zero Point Fixture arrives in custom-designed, durable packaging with high-density foam inserts and anti-static wrapping. Complete with user manual, warranty documentation, and mounting accessories. Multiple shipping options available with full tracking and international customs compliance.
Frequently Asked Questions
What is the AST Zero Point Fixture model SK96-205 used for?
Provides quick and precise workpiece positioning and clamping on CNC machines, improving machining efficiency and accuracy.
What are the main features of the AST SK96-205 Zero Point Fixture?
Compact design, high repeatability, easy installation, and strong clamping force for quick setup machining applications.
Is the AST SK96-205 compatible with standard CNC machine tables?
Yes, compatible with most standard CNC machine tables and easily integrated into existing setups.
How does the clamping mechanism work?
Uses a precise mechanical clamping system ensuring secure, stable fixation that minimizes vibration and improves accuracy.
Can it accommodate different workpiece sizes?
Yes, versatile design with adjustable clamping components accommodates a range of workpiece sizes.
